Case for detonators
Case for detonators
The product is intended for storage and transport of detonators in underground and open cast mines.
The product has a positive technical opinion of the Central Mining Institute.

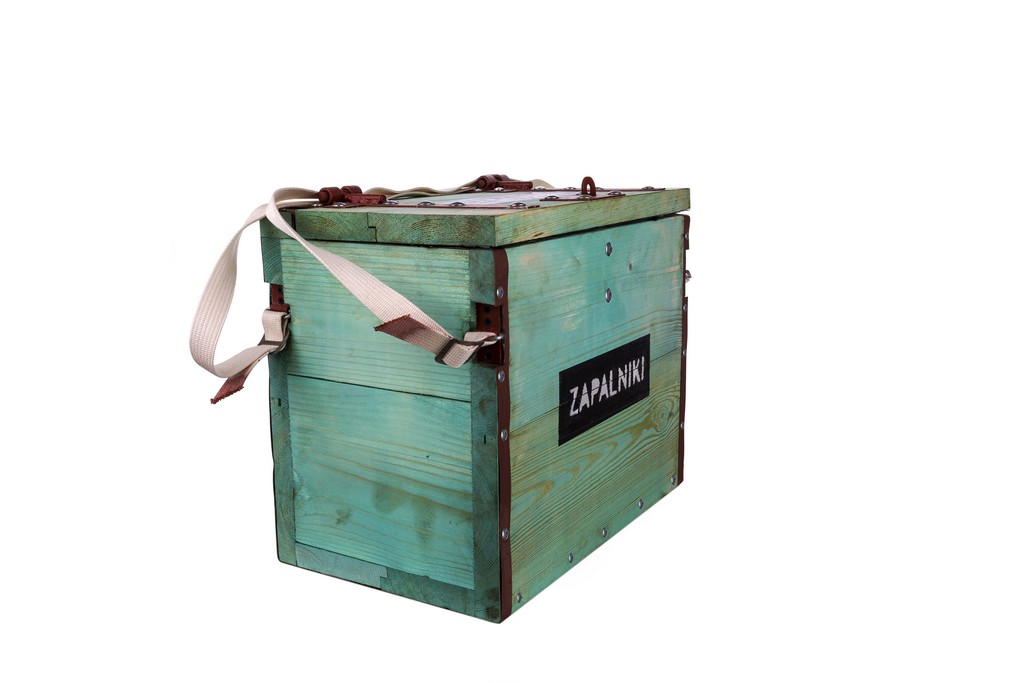

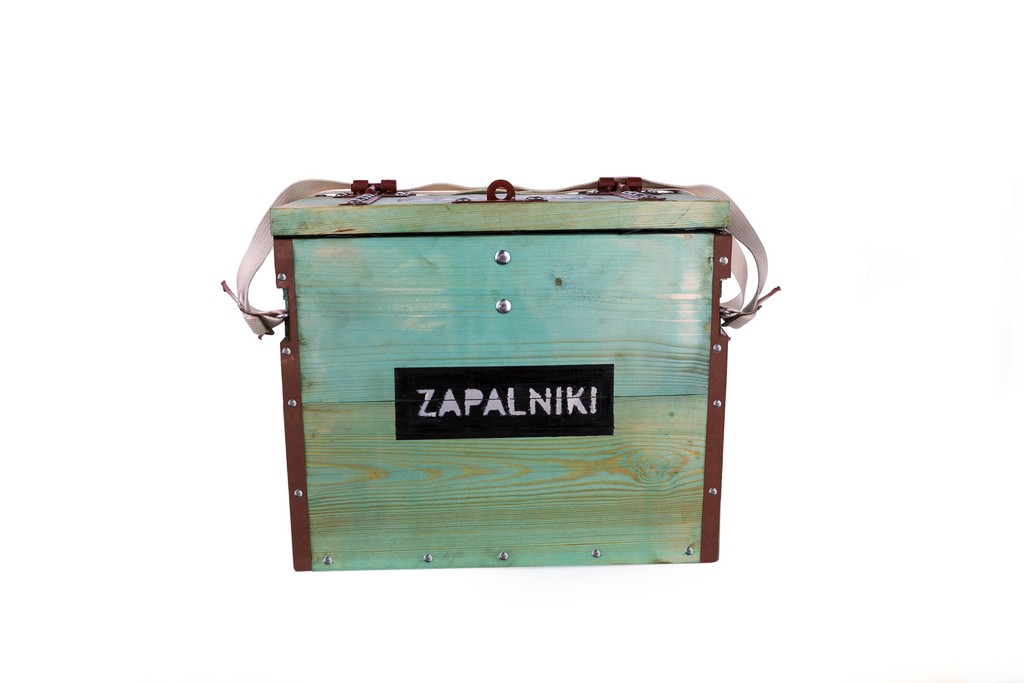

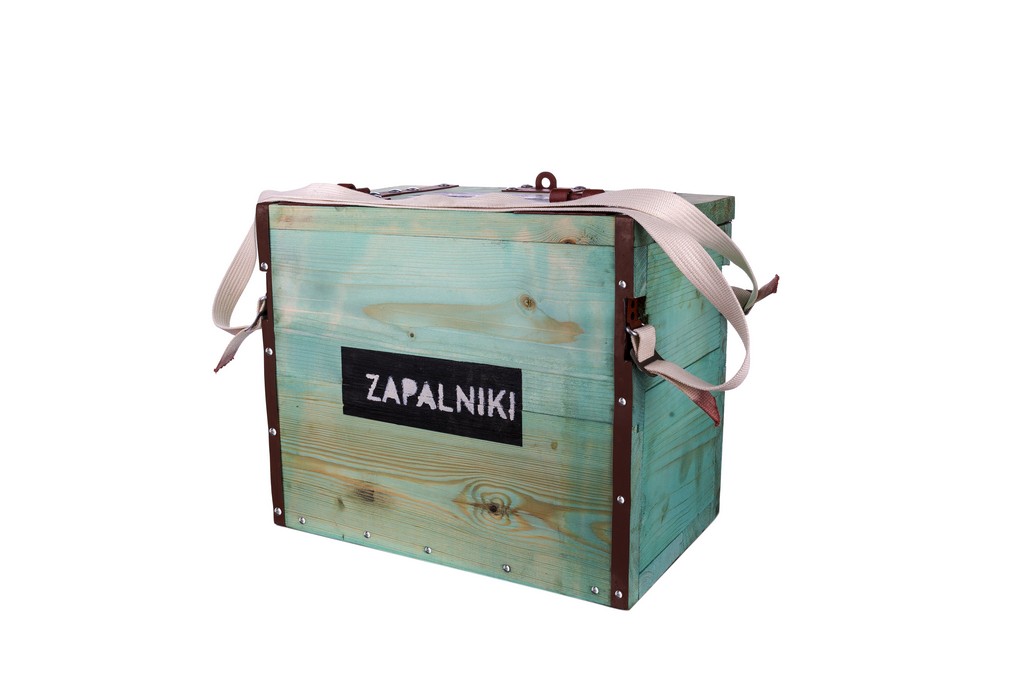

DESCRIPTION:
The case is made of pine wood, the thickness of the side walls is approx. 2 cm, and the front and rear walls are approx. 2.8 cm.
The inside of the case is covered with mining foil. On the sides there are metal lugs for attaching webbing straps serving as a handle.
A metal hasp is mounted on the inside of the front wall of the body, enabling the case to be locked with a padlock.

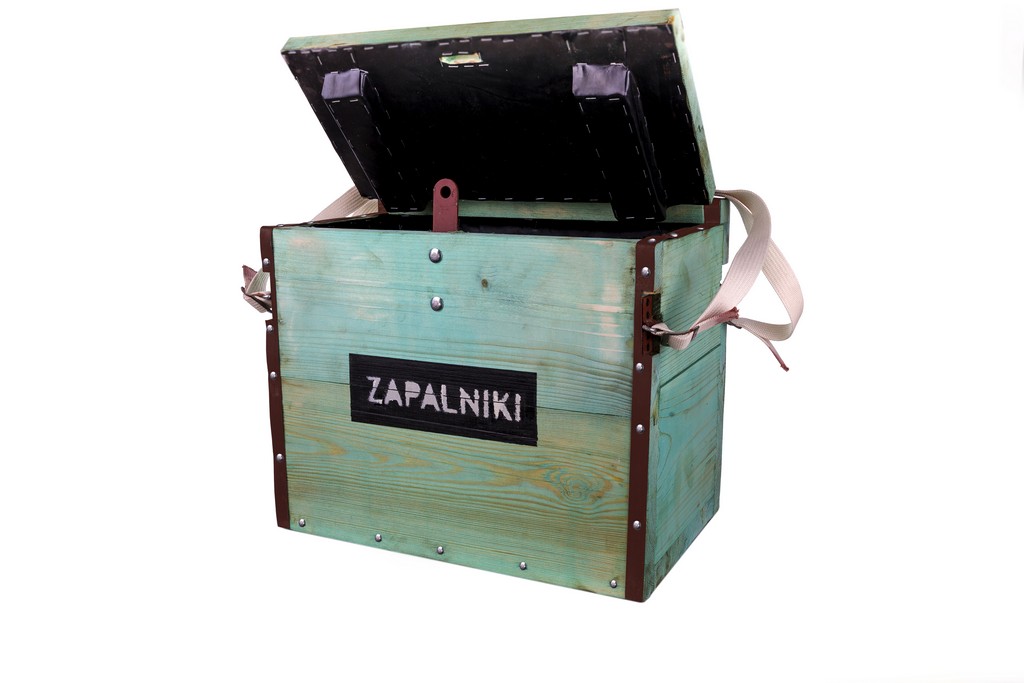

The case has a cover that is opened and closed with assembled metal hinges. The product is marked with a clearly visible inscription "DETONATORS”.
| Outer length [mm]: | 298 |
| Outer width [mm]: | 485 |
| Outer height [mm]: | 425 |
| Capacity: | |
| Electric detonators with 5 m wires [pcs]: | 360 |
| Electric detonators with 6 m wires [pcs]: | 288 |
| Nonelectric detonators with 5.4 m shock tube [pcs]: |
164 |
* It is possible to transport detonators with wires longer than 6.0 m - in this case, the number of detonators must be selected in such a way that their insertion takes place without perceptible resistance.
