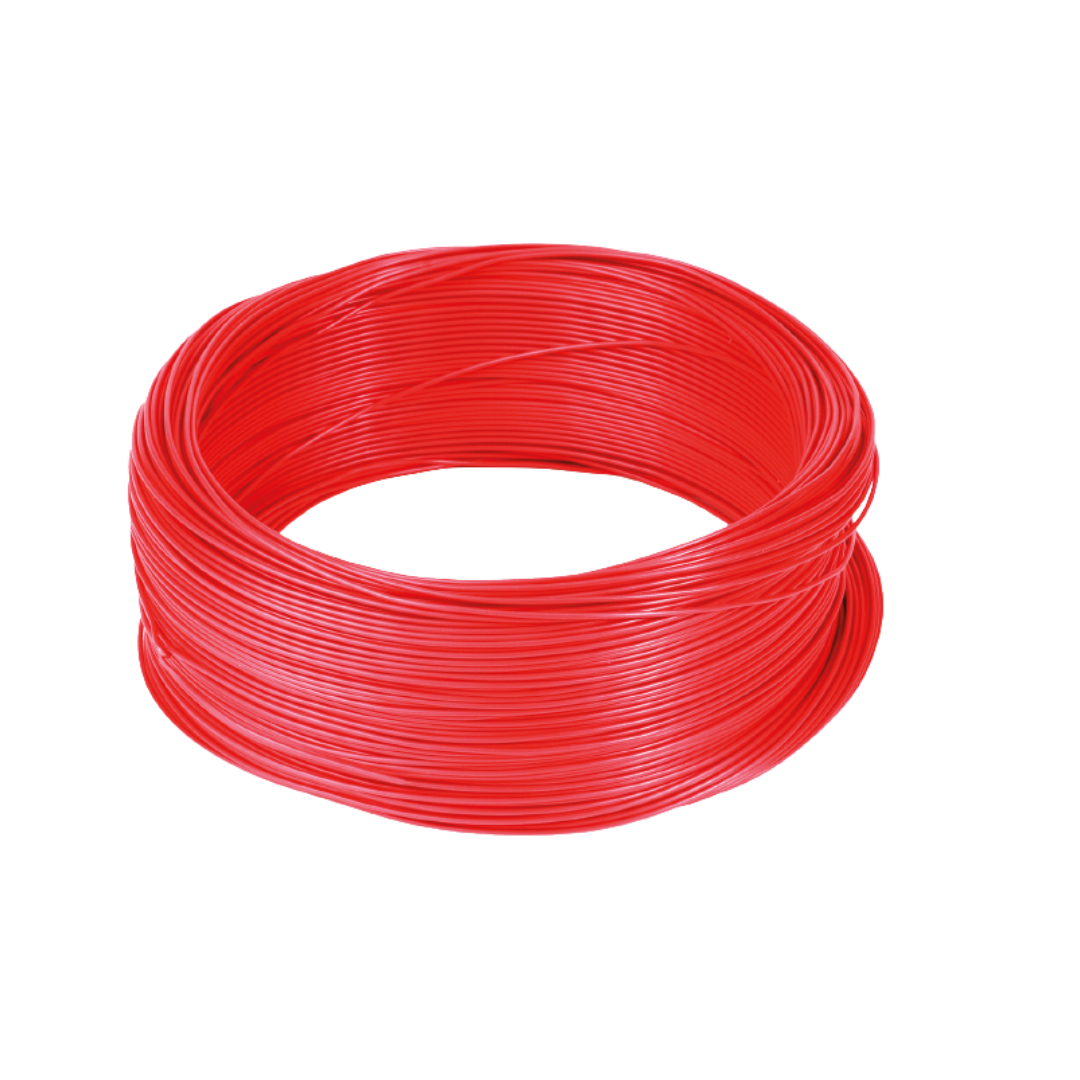

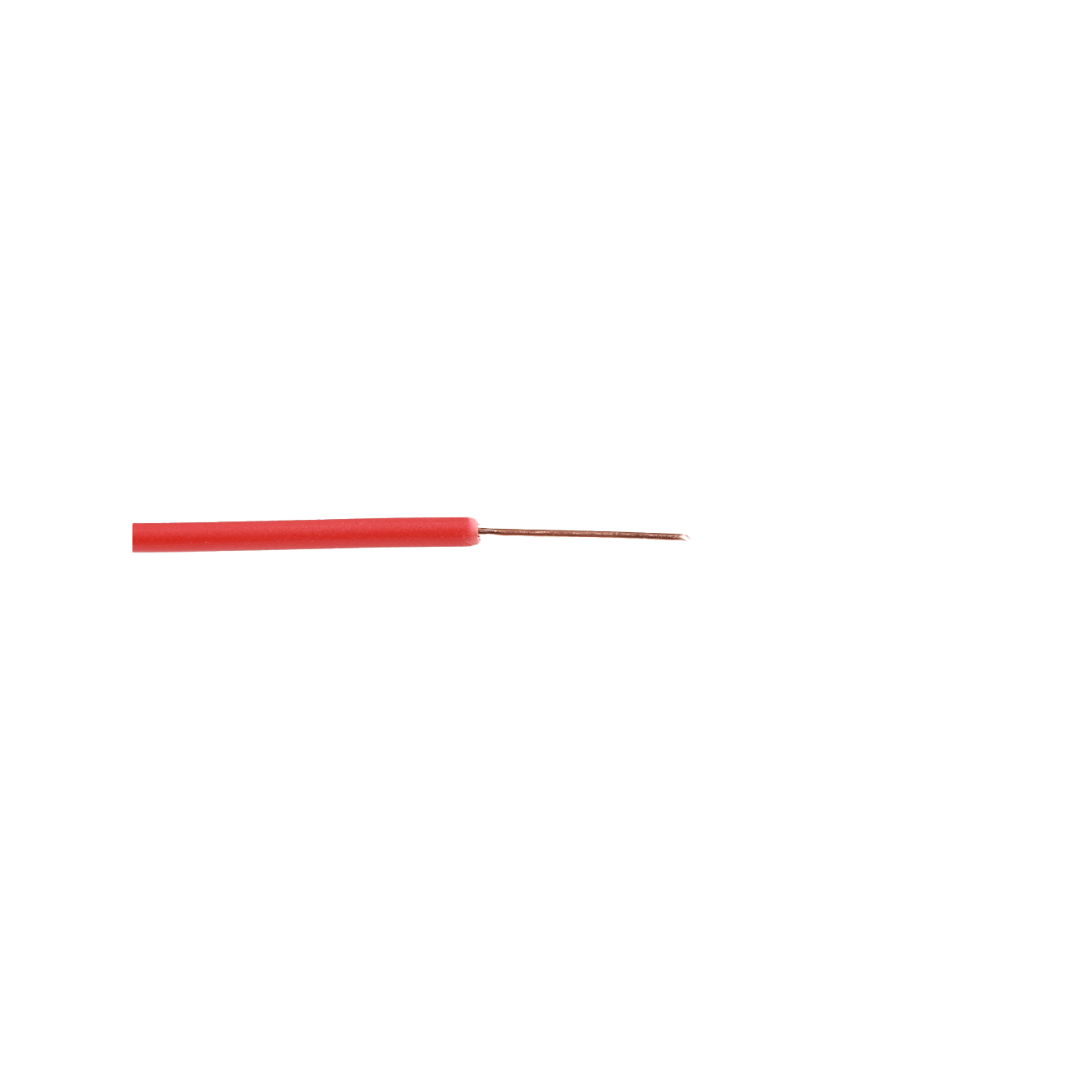

Blasting cable SDY 1 x 0.75 mm (Cu)
Blasting cable SDY 1 x 0.75 mm (Cu)
Blasting cable SDY is intended for use in blasting works, especially as a protective blasting cable to connect the circuit of electric detonators in the face with the blasting line.
The product has a positive technical opinion of the Central Mining Institute.

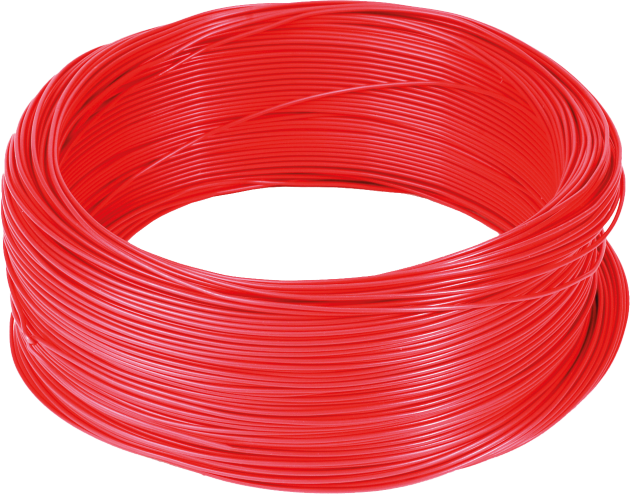

![Blasting cable SDY 1 x 0.75 mm (Cu)](/uploads/images/komponenty/top/przewod SDY 1x0,75 calosc_2.png)
PLACE OF APPLICATION
Blasting cable SDY can be used in all mines where blasting works are carried out, including methane fields of all hazard categories.
Nominal diameter of a cable [mm]: | 2,0 |
Nominal diameter of a core [mm]: | 0,75 |
Nominal thickness of insulation [mm]: |
0,6 |
Permissible voltage of the blasting machine [V]: |
1500 |
Number of cores in a cable: |
1 |
Resistance of a single core max.: |
max 4,12 Ω / 100m |
Working temperature [ ˚C]: |
-15 to +70 |
Colour of insulation: |
red |
